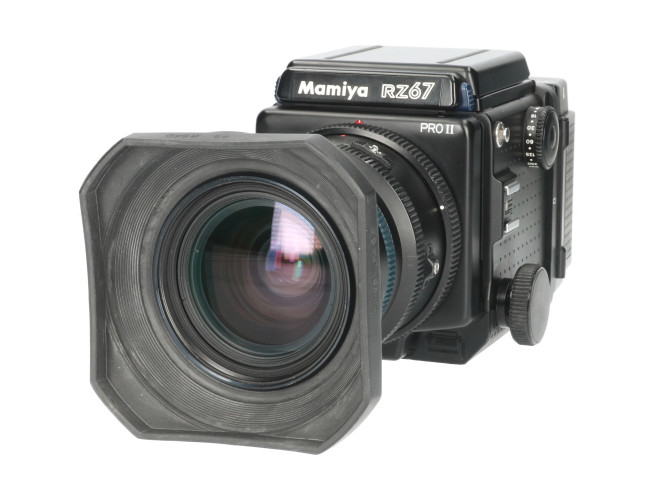

Tweedehands Mamiya RZ67 Pro II met Sekor-Z 65MM F/4 CM5889

De Mamiya RZ67 uit begin van de jaren negentig van de vorige eeuw met een 65mm lens en een bijpassende achterwand.
Het geheel werkt naar behoren en ziet er nog redelijk netjes uit. Intern zit er wel iets stof.

Voor een indruk van deze Mamiya verwijs ik naar de foto's.

Thomas' oordeel over deze occasion:

3 sterren waardering!

Hoe wordt dit bepaald en wat houdt dit in?

Klik hier voor uitleg

De staat van dit tweedehands artikel is door ons gewaardeerd met 3 sterren. Dit houdt in dat dit artikel redelijk gebruikt is en hierdoor lichte gebruikssporen heeft. Dit zijn producten die nog vele jaren meekunnen en de werking ervan is ook nog prima in orde.

The Mamiya RZ67 is a medium format single-lens reflex system camera manufactured by Mamiya. There are three successive models: the RZ67 Professional (first model released in 1982), RZ67 Professional II (released in 1995) and RZ67 Professional IID (released in 2004). RZ67 is a modular camera system, meaning lenses, viewfinders, ground glasses, film winders and film backs are all interchangeable. It is primarily designed for studio use, but can also be used in the field. The RZ67 Sekor lenses have built-in electronic leaf shutters which are cocked and triggered from the body. Focusing is performed with a bellows on the body instead of the lenses.

The camera accepts 6×7, 6×6 and 6×4.5, 120 and 220 film magazines and Polaroid as well as Quadra 72 4×5 sheet film backs. Mamiya RB67 backs are also supported via the G-Adapter. The film speed is set on each RZ back via a dial. There are two versions of the 6×7 and 6×4.5 backs; the model II versions have a second film counter to always show the film count on the top. The RZ67 operates on one 6 V silver oxide 4SR44 battery, or 6 V 4LR44 alkaline battery. It can be used in emergency mode fully mechanically with a fixed 1/400 sec shutter speed. Multiple exposures are possible in the M-mode. Mirror flip up is supported. The body has one standard flash hot shoe on its left side, one plug for a standard remote shutter cable release, and a socket for an electronic shutter trigger. The RZ67 measures 104 mm (W) × 133.5 mm (H) × 211.5 mm (L) with the 110mm f/2.8 lens, and weighs approximately 2.4 kg (5.29 lbs). The flange distance is 105 mm.

The RZ67 name is adopted from the model name of the Mamiya RB67 (in which RB stands for "Revolving Back"), which was first introduced in 1970, thus the RZ67 also takes backs which can be rotated 90 degrees to provide a horizontal or vertical composition. The orientation is shown in the viewfinder with black guides. The viewfinder also hosts LEDs informing of the state of the camera (flash ready, low battery, dark slide not removed, shutter not cocked). In addition to manual operation (photographer chooses aperture and shutter speed), the RZ67 is able to operate in AEF mode with an AE viewfinder (AE being an abbreviation for automatic exposure), which transmits exposure information directly to the body. In RBL compatibility mode, the RZ67 is able to use RB67 lenses. The biggest difference between RB67 and RZ67 is that the RB67 is completely mechanical. The RZ67 has also mechanical couplings between the parts, but the shutter is electronic, and parts are able to transmit exposure information with electronic couplings. In addition, the RZ67 has plastic exterior body, which makes it somewhat lighter.
